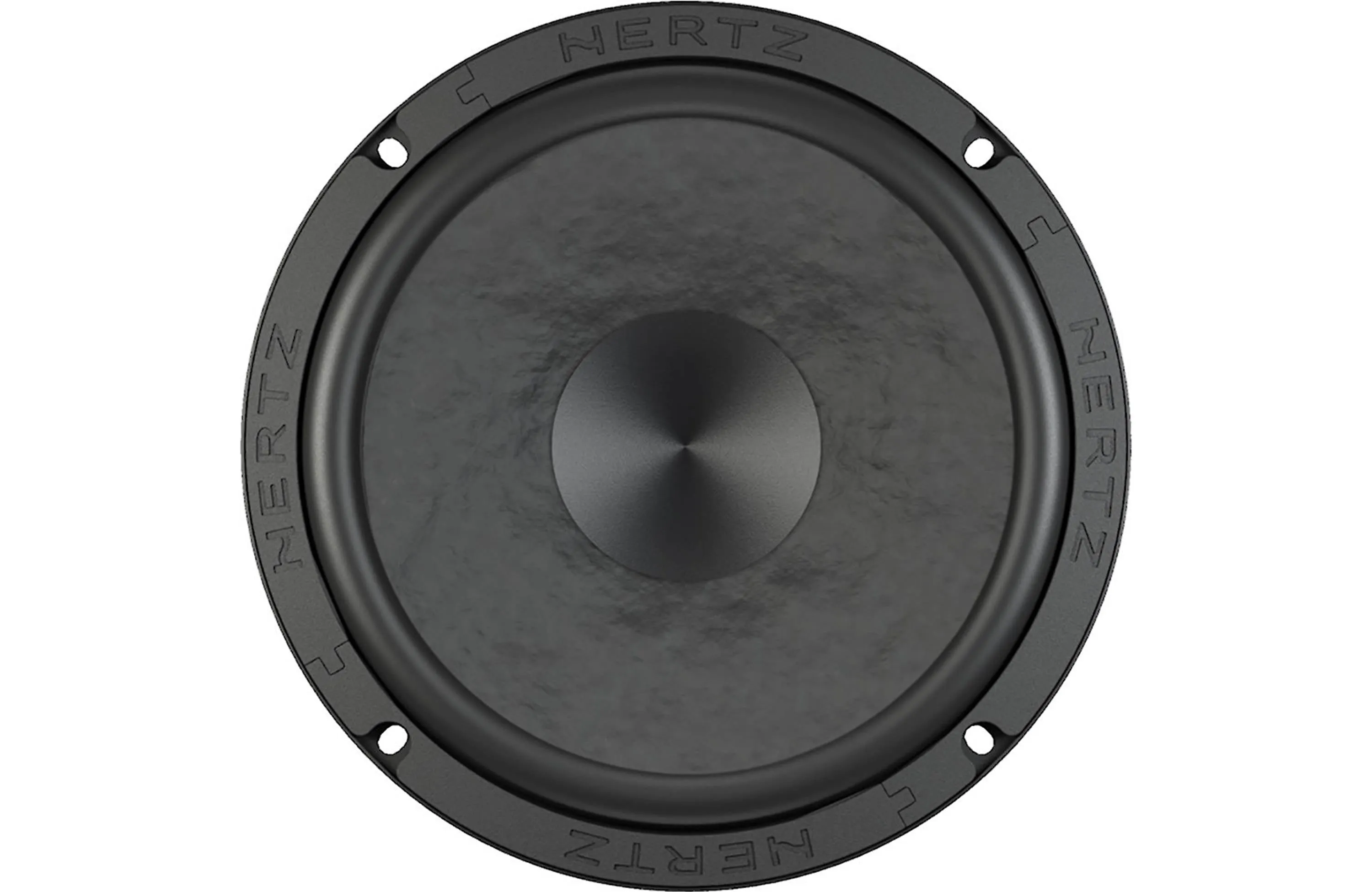

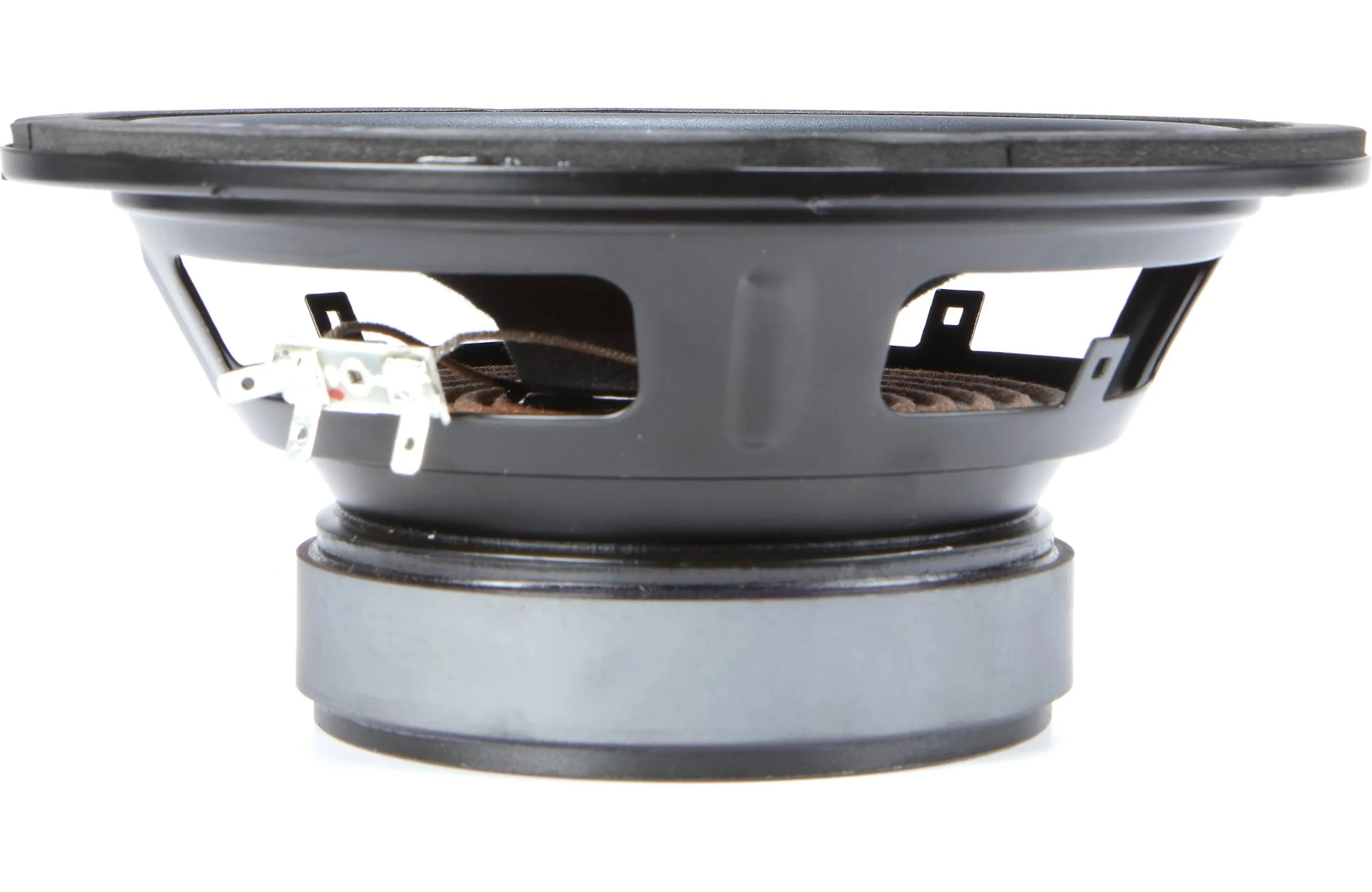

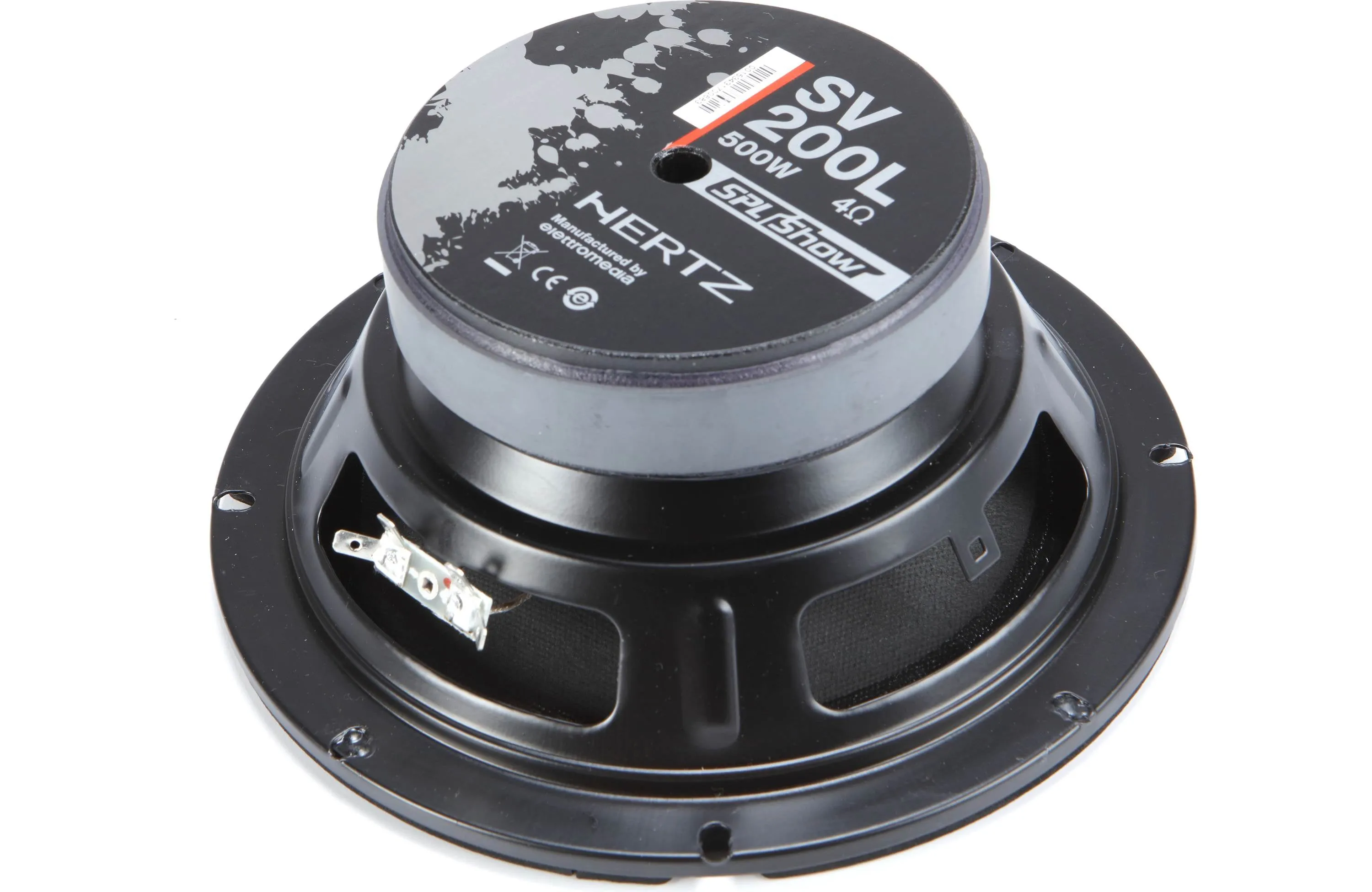

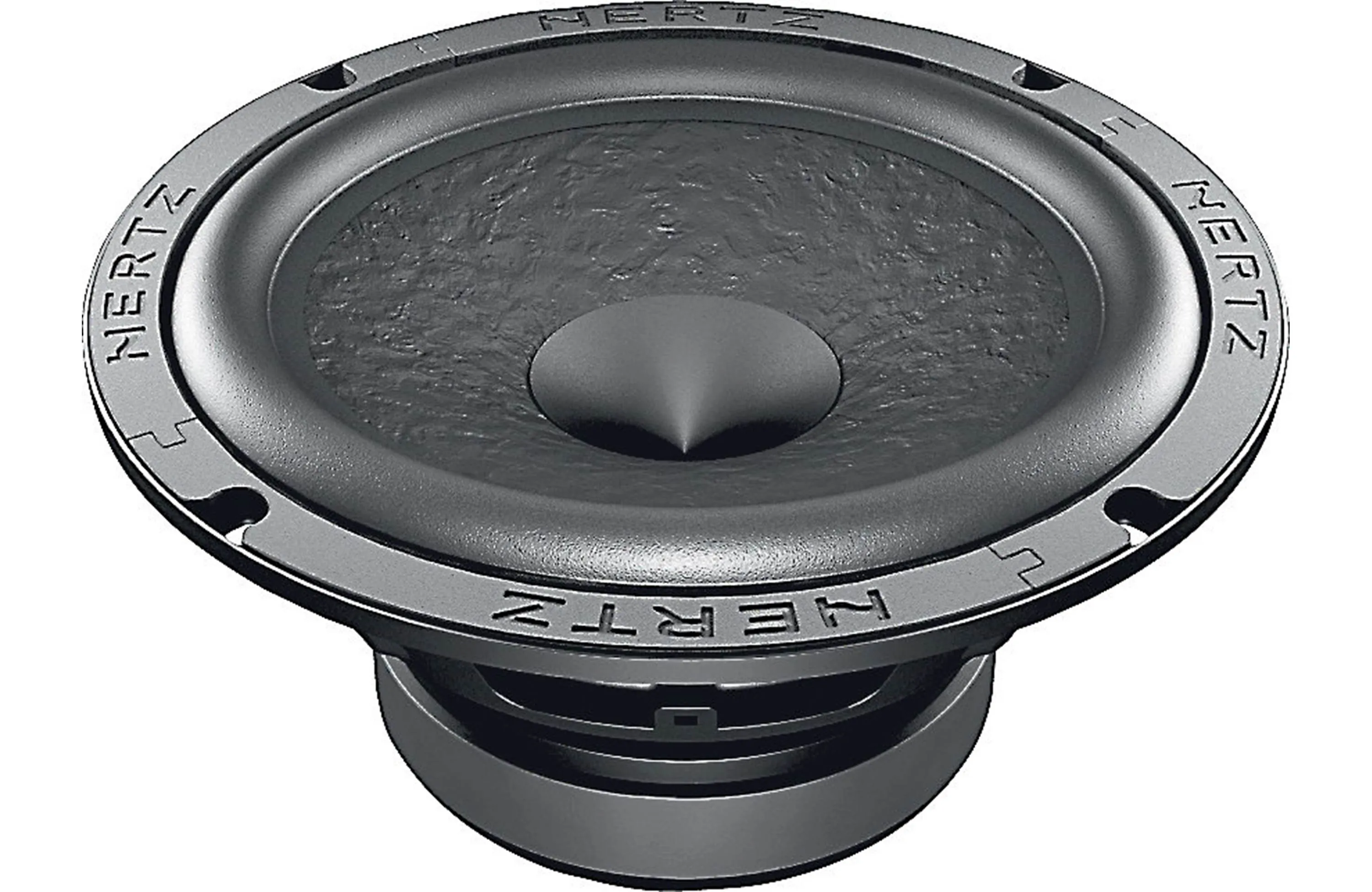

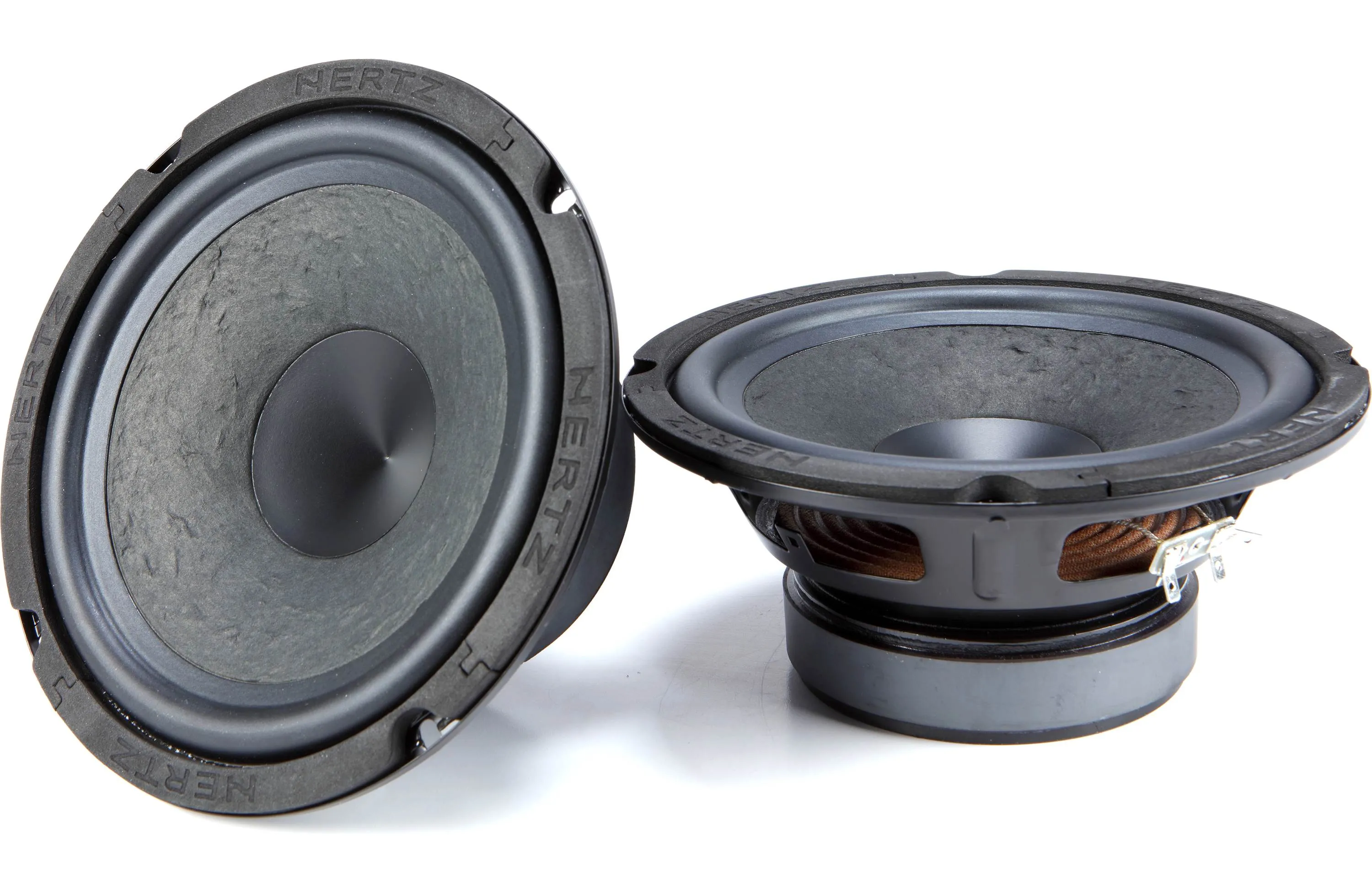

Hertz SV 200L SPL Show 8" Component Woofer (Pair)

The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.

Technologies

V-cone
The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Specs

Size mm (in.) 200 (8)
Power Handling - Peak W 500
Power Handling - Continuous W 250
Impedance 4
Frequency response Hz 45 4,5k
Sensitivity dB SPL 94,5
Voice coil mm (in.) 50 (2)
Magnet High density flux ferrite
Cone/Dome Ultra light, non pressed paper
