Product Details
＋

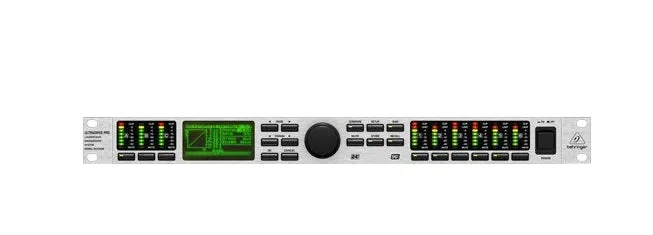

Digital 24bit/96kHz Loudspeaker Mgmt System Crossover
OVERVIEW
The Ultradrive Pro DCX2496 is a digital loudspeaker management system with 3 analog inputs and 6 analog outputs. This system has with independent crossover filters with individual roll-off characteristics ranging from 6-48dB octaves. The ULTRADRIVE PRO software allows complete control through a PC using RS-485 or RS-232 interfaces. For speaker protection, the system consists of Zero attack limiters for all types of output channels. Make your venue sound like it was tuned by the pros.
SPECIFICATIONS
| DCX2496 |
| 3 analog inputs/6 analog outputs |
| High-end 96 kHz converters for wide dynamic range (120 dB) |
| Integrated sample rate converter for easy connection of external digital signals |
| Precise Dynamic EQs |
| Several types of EQs (LP/BP/HP) for each input and output |
| "Zero"-attack Limiters on all output channels for optimal speaker protection |
| Four different mono and stereo output operating modes |
| Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave |
| Adjustable Delays for all inputs and outputs€”allow manual or automatic correction for room temperature, phase and arrival time differences |
| Additional Sum signal derived from the A/B/C inputs |
| Free ULTRADRIVE PRO software |
| Link option via RS-485 network interface |
| 60 user-defined internal presets storable |
| Servo-balanced, gold-plated XLR connectors for all inputs and outputs |
